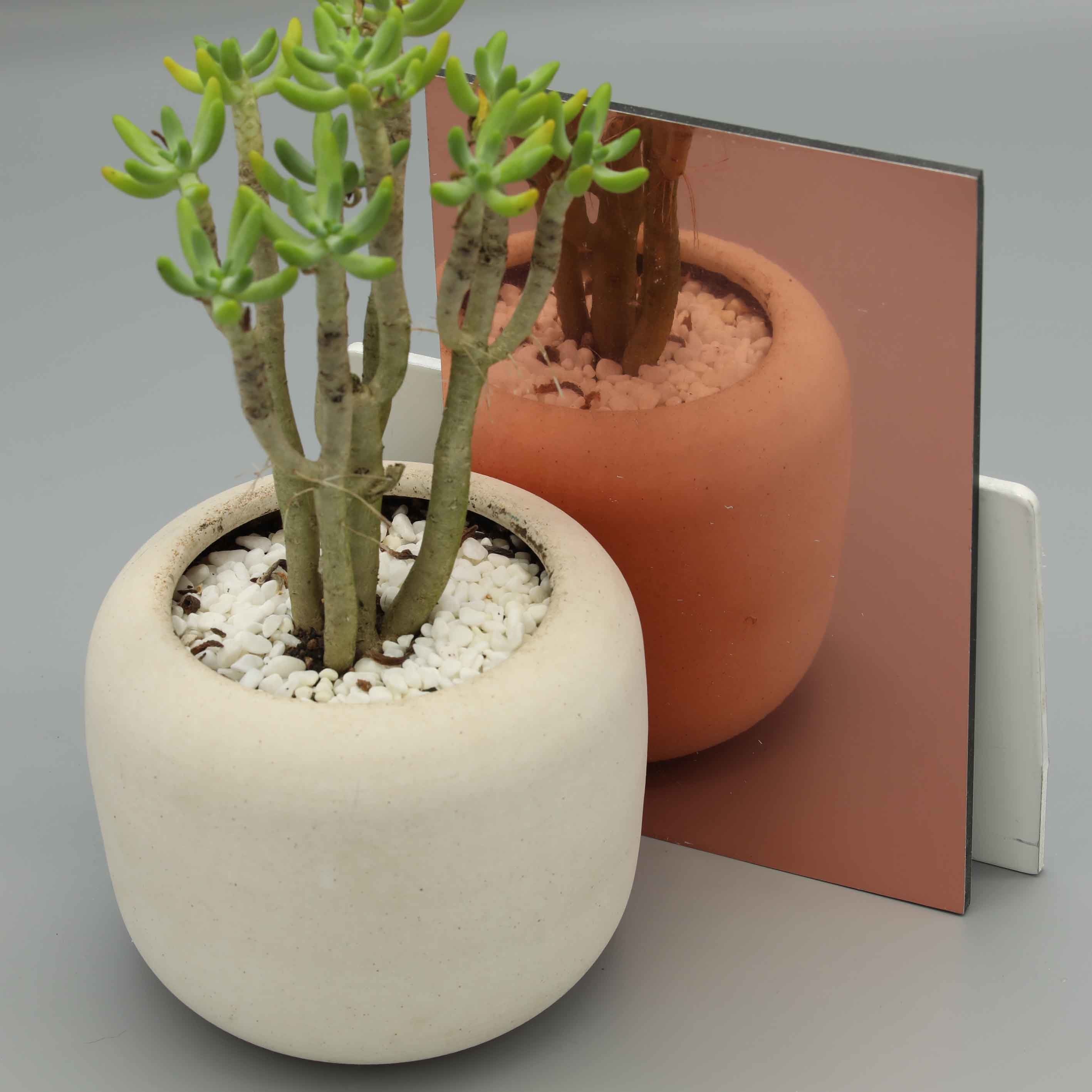

A high-performance decorative solution, Mirror ACP features a three-layer sandwich construction: a nano-smooth aluminum front layer (0.2–0.5mm thick, ≥99.5% purity) processed via vacuum metallization to reach 92–95% light reflectivity, a 3–6mm core (PE or fire-retardant) for structural support, and an aluminum backplate with anti-oxidation treatment. With a density of 2.7g/cm³—33% the weight of stainless steel—and 150MPa tensile strength, it balances lightness and durability. Key metrics: ≥90GU gloss (60° angle), ΔE≤1.5 color stability after 1000-hour QUV aging, and optional B1 fire rating, making it ideal for premium architectural and industrial applications.
Application

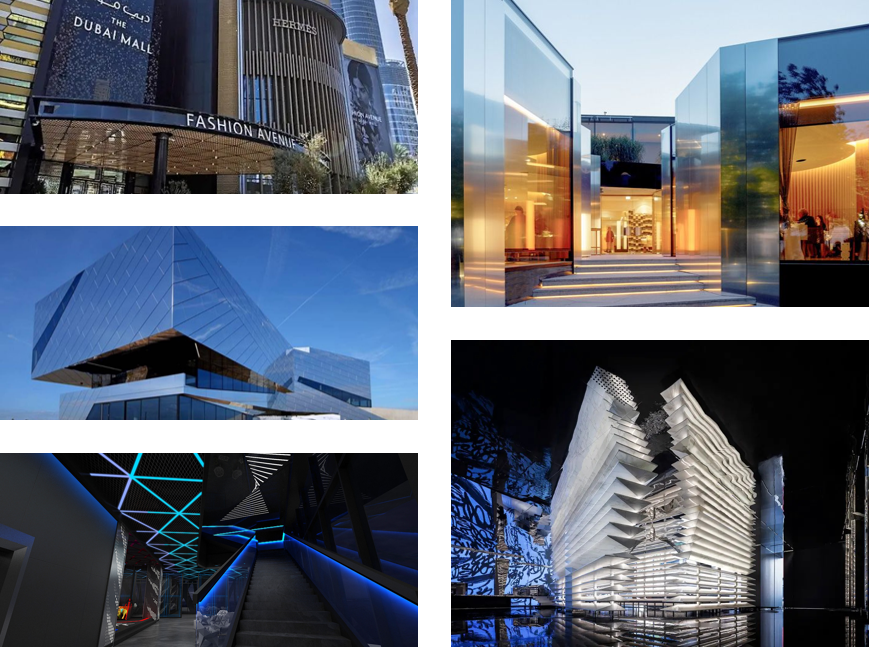

Architectural Facades
Mirror ACP serves as a premier exterior cladding solution for commercial plazas, corporate skyscrapers, and residential high-rises. Its exceptional light-reflective properties, paired with versatile finishes—from mirror-polished to PVD-colored or brushed textures—crafts eye-catching architectural statements. The material’s lightweight composition (4–5 kg/m²) simplifies installation, while its weather-resistant core minimizes long-term upkeep, making it a cost-effective choice for large-scale exteriors.
Signage & Branding
Ideal for high-impact visual identity, Mirror ACP acts as a luminous backdrop for logos, storefront signage, and backlit displays, thanks to its reflective surface that enhances visibility. It’s widely adopted in industrial zones, corporate parks, and logistics hubs for branded facades or directional panels, retaining crisp details even in large-format designs.
Hospitality & Commercial Interiors
From luxury hotel lobbies to upscale retail spaces, Mirror ACP elevates interiors with its sleek, space-expanding effect. Its customizable finishes complement diverse design themes, while easy cleaning (resistant to fingerprints and stains) suits high-traffic areas.
Renovation Projects
- Retrofitting: Effortlessly mounted over concrete or brick substrates, it revitalizes aging buildings without major structural overhauls, cutting renovation timelines by 30–40%.
- Eco-Upgrades: Contains 30–50% recycled aluminum and boasts low carbon emissions during production, aligning with LEED and China Green Building certifications for sustainable retrofits.

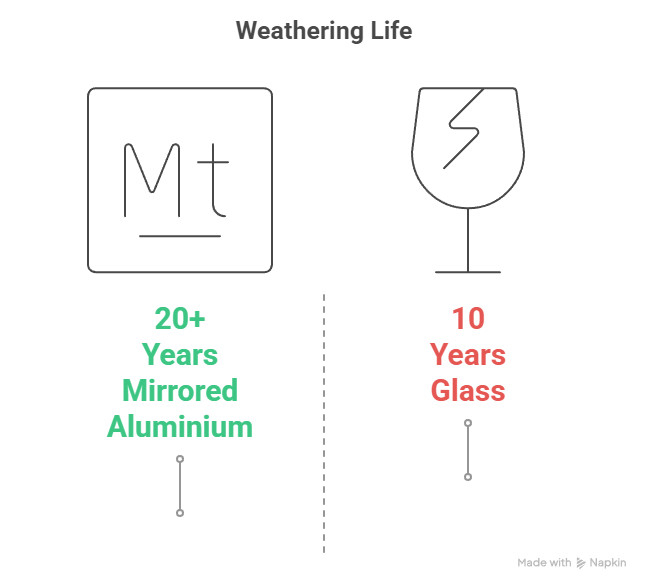

Mirror aluminum composite panels (ACP) excel in impact resistance, overcoming the vulnerability of traditional glass. Unlike glass, mirror ACP resists breakage even under significant impact, offering superior safety and durability. When used for architectural facades, its high reflectivity and versatile shaping capabilities endow buildings with a strong sense of modernity and aesthetic appeal, instantly making them visual focal points. Whether adorning the grand curtain walls of commercial complexes or the artistic exteriors of cultural venues, structures clad in mirror ACP often attract hordes of tourists and photography enthusiasts, quickly becoming trendy landmarks on social media. These Internet celebrity buildings not only transform the city skyline, infusing urban areas with new vitality, but also give rise to the "check - in economy." They stimulate the development of surrounding industries such as catering and cultural and creative products, thus providing new impetus for urban economic growth.
Specifications And Sizes
| Specifications and Sizes |
| Aluminum Skin Thickness: | 0.06mm-0.50mm |
| Total Panel Thickness: | 2mm-6mm |
| Width: | 1000mm, 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm, (maximum) |
| Length: | Up to 5800mm |
| Standard Size: | 1220mm (width)×2440mm (length) |
| Production Capability: | 100,000sqm / month |
| Inner core | ( Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible mineral filled core,A2 non-combustible mineral filled core |
| Non-standard sizes and special colors are available depending on customers' offers |
Packaging
To ensure the integrity of wood-grain aluminum composite panels (ACP) during transportation, a comprehensive protective packaging system is implemented. Each panel undergoes meticulous surface protection, enveloped in a high-quality protective film that acts as a robust barrier against scratches, abrasions, and minor impacts, safeguarding the pristine finish of the ACP. Subsequently, the wrapped panels are carefully placed into custom-designed wooden crates, crafted to precisely fit the dimensions and quantity of the panels, providing maximum structural support and resistance to external forces.
-
We provide shipping services meticulously customized to meet diverse client requirements. For projects with budget constraints, our Economy Shipping option offers a cost-effective solution, utilizing containerized sea freight. This service comes with comprehensive door-to-door tracking and includes customs brokerage, ensuring a seamless and stress-free transportation process from start to finish. When speed is of the essence, our Expedited Shipping service steps in, leveraging dedicated air cargo with priority handling. This allows us to guarantee delivery to most major cities within just 5 days, ideal for urgent projects with tight deadlines.
- Customer Support: Should you have any questions or concerns regarding our packaging and shipping methods, our customer service team is always available to assist you. We are committed to providing the highest level of service, ensuring a seamless experience for all our customers.
